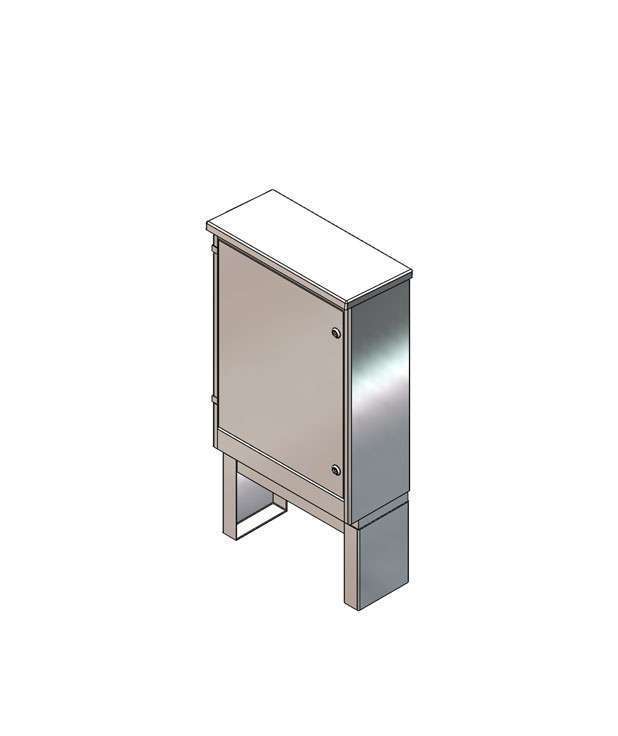

Electrical Enclosure – E2 410 feeder Pillar

(Hinged Door)

Height (Above Ground) 770mm
Width 512mm
Depth 227mm
Backboard (H) 595mm
Backboard (W) 410mm
Working Depth 160mm

From: £405.07

The classic Haldo hinged door cabinet is a durable anti vandal cabinet which offers many customisable options. From door locks, to steel thickness to paint finish, the E2 cabinet can do the job you want it to do. As standard the cabinet is manufactured in 3mm mild steel, galvanised to BS EN ISO 1461 and comes complete with ply back board and Tri Cam locks. Single door cabinet sizes start with the E2 slim line at 200mm wide up to the E2-910 at 1.1m wide.

Colours are:

  • Green BS 14 C 39
  • Grey RAL 7031
  • Black RAL 9005

standard specification

  • 3mm mild steel
  • Hot dip galvanising to BS EN 1461
  • Detachable plinth for root mounting
  • Stainless steel Anti Vandal hinges
  • 12mm ply backboard
  • Door seal to IP 65
  • Earth cable from Door
  • Tri Cam locks as standard
  • Warning sticker
  • Key included

lock options

  • Crown Lock
  • Hasp and staple
  • Hasp and staple shroud
  • Yale Lock

DOWNLOAD SPEC SHEET

  • The classic Haldo hinged door cabinet is a durable anti vandal cabinet which offers many customisable options.

    • 5mm steel or stainless steel
    • Other specifications of back board on request
    • Range of coloured finishes
    • Long life root protection
    • Vents with or without fly screen
    • Market Trader Door option
    • Document pocket to rear of door
    • Internal gland plate
  • Height (Above Ground) 770mm
    Width 512mm
    Depth 227mm
    Backboard (H) 595mm
    Backboard (W) 410mm
    Working Depth 160mm
