//Double Door E-1 Pillar

Double Door E-1 Pillar

£1,646.00£2,090.00 Excl.VAT

The Double Door metal pillar range are robust, vandal resistant and manufactured to a very high quality. These metal enclosures have a design that incorporates flush fitting hinges and hidden ventilation yet it provides an ingress protection rating of IP65. The door lends itself easily to lock customisation, while the neat radius corners create a quality design that looks timeless on any street.

  • Galvanised finish to BS EN ISO 1461
  • Vandal resistant
  • Hinged door
  • Fabricated from 3mm mild sheet steel
  • Tri-cam locks supplied as standard
Download Data Sheet

Description

The Double Door metal pillar range are robust, vandal resistant and manufactured to a very high quality. These metal enclosures have a design that incorporates flush fitting hinges and hidden ventilation yet it provides an ingress protection rating of IP65. The door lends itself easily to lock customisation, while the neat radius corners create a quality design that looks timeless on any street.

main features
Vandal resistant
Flush fitting doors
Fabricated from 3mm mild steel
Variety of locking mechanisms
Plinth mounted or surface / wall mounting available
Radiused corners eliminates sharp edges
Fully lined door aperture
IP65 Rated door seal with IP42 ventilator
Hot dipped galvanised finish to BS EN ISO 1461

locks
Standard locks supplied are Crown Insert Lock or Tri Cam Lock, others available on request.

internal
Fitted with back board made from 12 mm external grade plywood.
Stainless steel earth terminal and earth strap between cabinet and door.
Heavy duty door hinges secured with stainless steel pins and nylon bushes.
EDPM Door seal 20 mm wide x 10 mm thick.

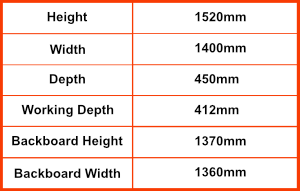

Additional information

Weight 200 kg
Dimensions 140 × 45 × 152 cm
Finish

Galvanised Only, Galvanised and Painted Grey RAL 7031, Galvanised and Painted Black RAL 9005, Galvanised and painted Green BS 14 C 39

Locks

Tri-cam, Crown Insert

Brand

Haldo

Add Hasp & Staple?

YES, NO

Add Steel Shroud?

YES, NO
